15 Ton Araç Üstü Yük Vinç | HIYAP DH 50 YK5

Fiyat için arayın


Çalışma Yüksekliği

23,5 m


Yatay Erişim

16,5 m


Kaldırma Kapasitesi

5 000 kg


Toplam Ağırlık

18 000 kg

Kategoriler:

15 Ton Araç Üstü Yük Vinç | HIYAP DH 50 YK5

🔹 Genel Tanıtım

Dikey çalışma 20,5 m (mekanik ilave 6,00 m ile toplam 23,5 m), yatay erişim 16,5 m ve 5 000 kg kaldırma kapasitesi.

🏗️ Kullanım Alanları

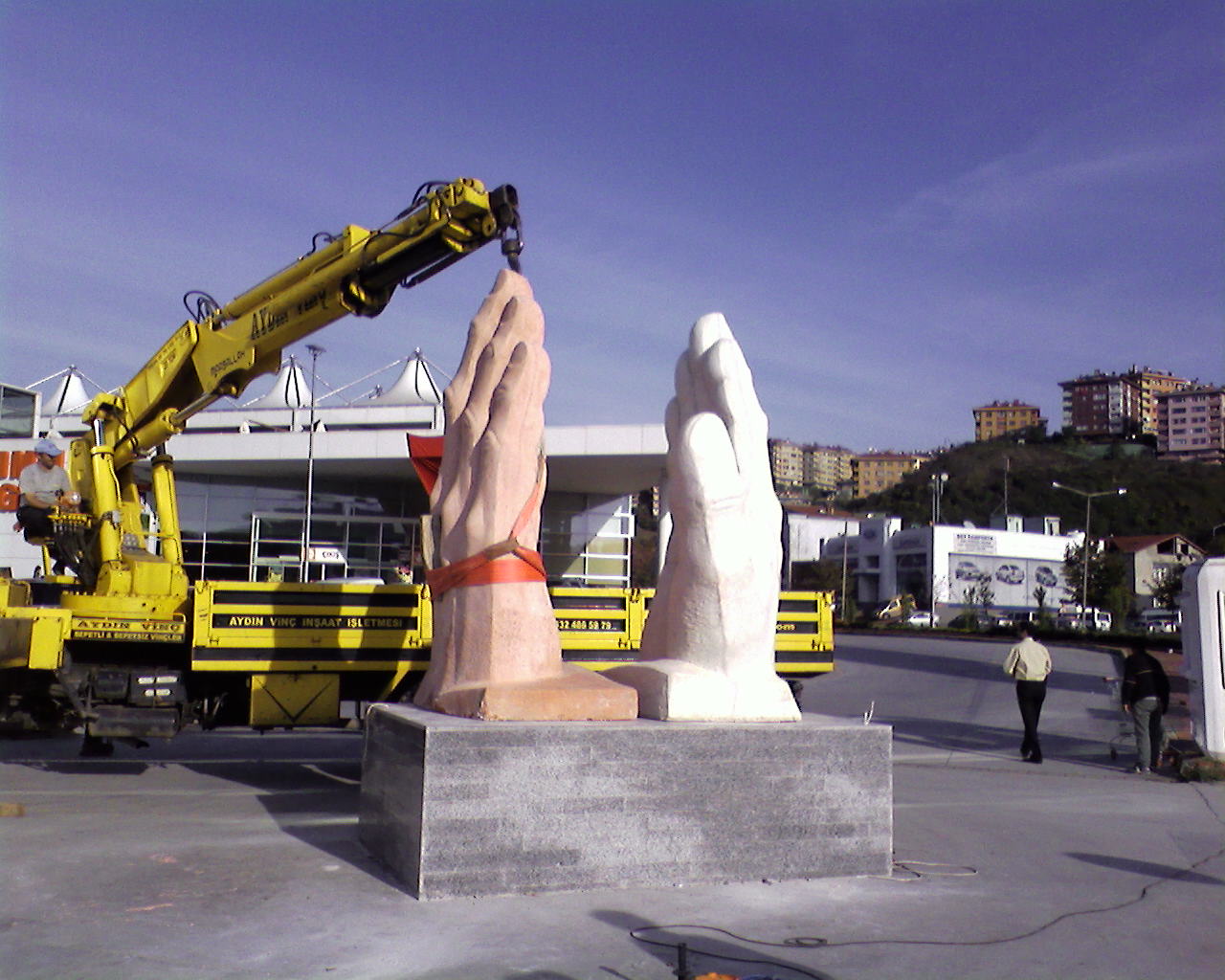

İnşaat, bakım-onarım, ağaç budama ve reklam montajı gibi dar alan gerektiren hafif ve orta ölçekli işlerde ideal.

🛡️ Güvenlik Özellikleri

Sonsuz dönüş kabiliyeti, stabilize edici ayaklar ve acil durdurma sistemi ile tam koruma.

⚡ Performans ve Verimlilik

Maksimum hidrolik uzanma 12,66 m’de 2 870 kg; manuel uzanma 17,08 m’de 1 860 kg; çalışma basıncı 250 Bar.

🎯 Ergonomi ve Tasarım

Platform sepet ölçüleri 0,80×1,10×1,40 m; kolay kurulumlu 6,36 m outriggers açıklığı.

🏆 Aydın Vinç Farkı

7/24 teknik destek ve orijinal yedek parça temini ile kesintisiz hizmet.
